Bipolar Ionisation
Solutions

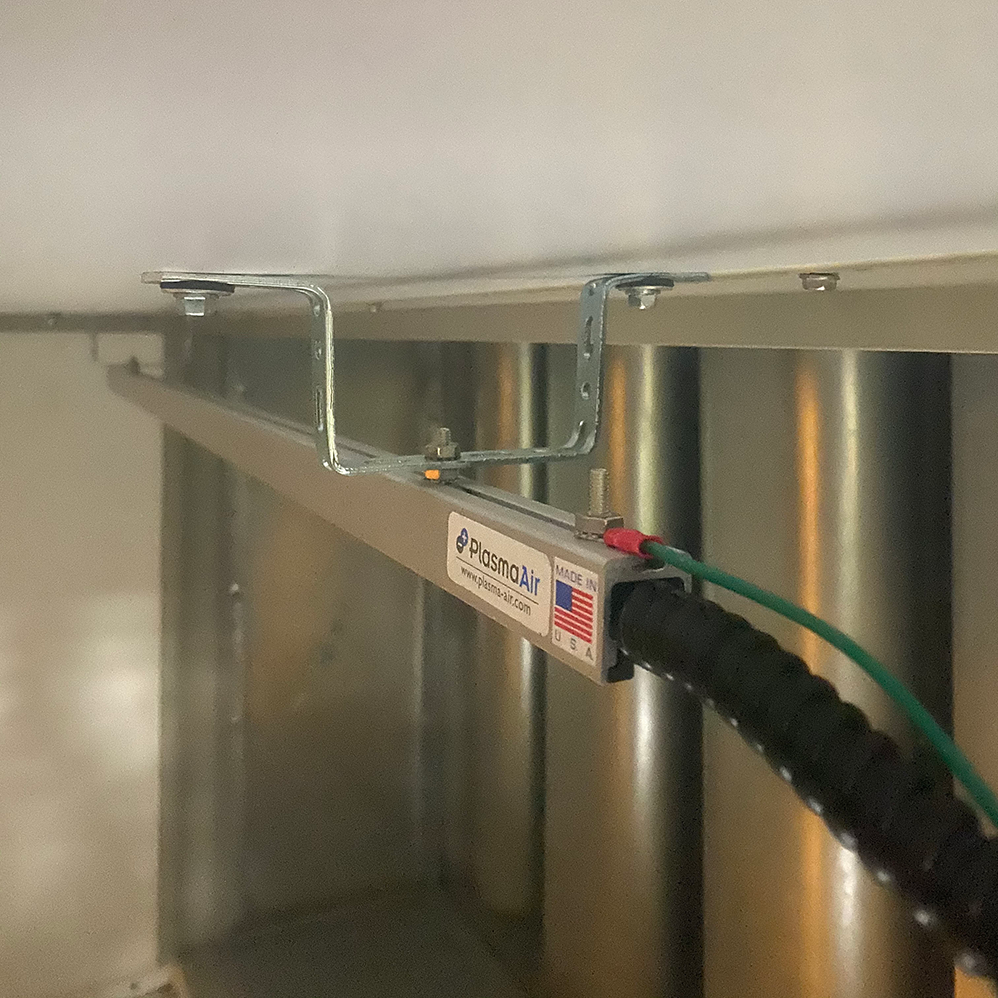

Bipolar Ionisation for AHUs

Bipolar ionisation installed in the AHU will treat the air entering the building before it gets to the occupied zone.

Ultra fine particles that have passed straight through the filters will be clustered into larger, less harmful particles that will either be removed by low grade filters in FCUs, or will eventually drop out of the breathing zone. VOCs from vehicle emissions will be broken down into less harmful compounds as they pass through the ductwork.

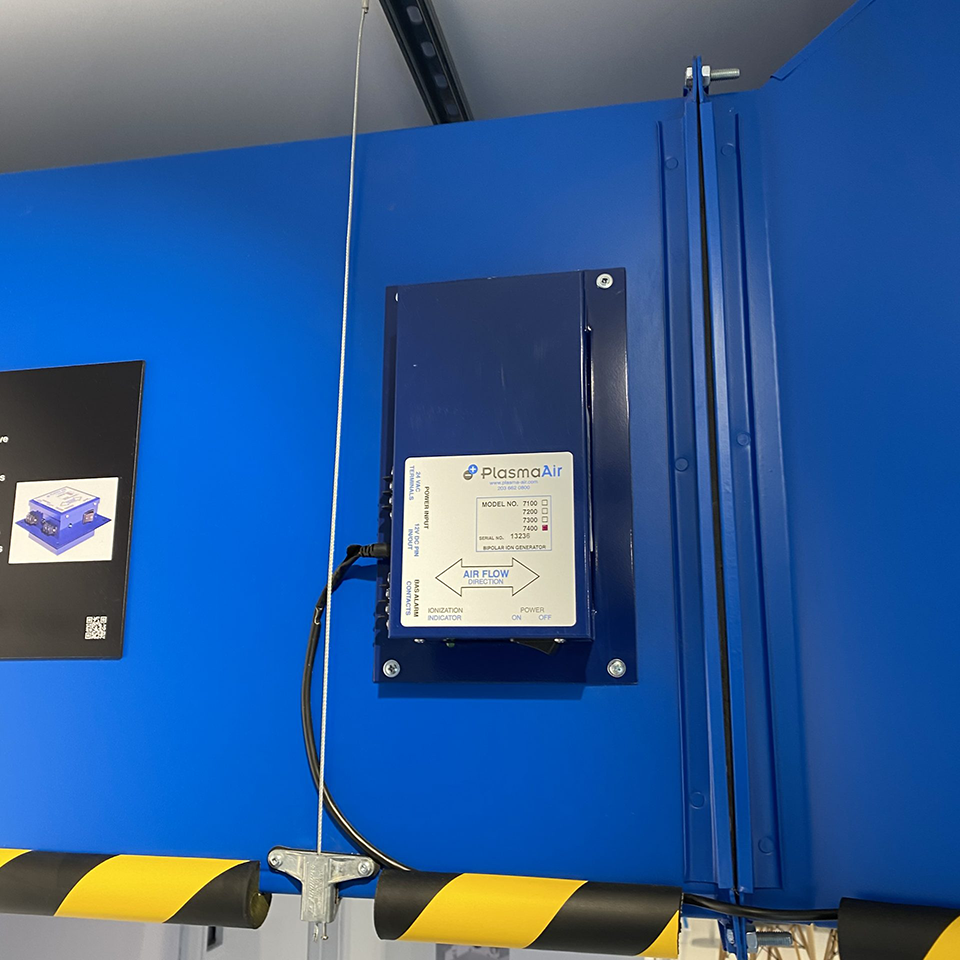

Bipolar Ionisation for Branch Ducts

If ionisation cannot be installed in the AHU, branch ducts are a good option. Installing in branch ducts allows the amount of ionisation to be matched to the level of pollutants in each space.

Airspeed across the ionisation unit is critical, so placement of units near bends without turning vanes should be avoided. While Bipolar ionisation units do not require consumables, access for maintenance should be provided.

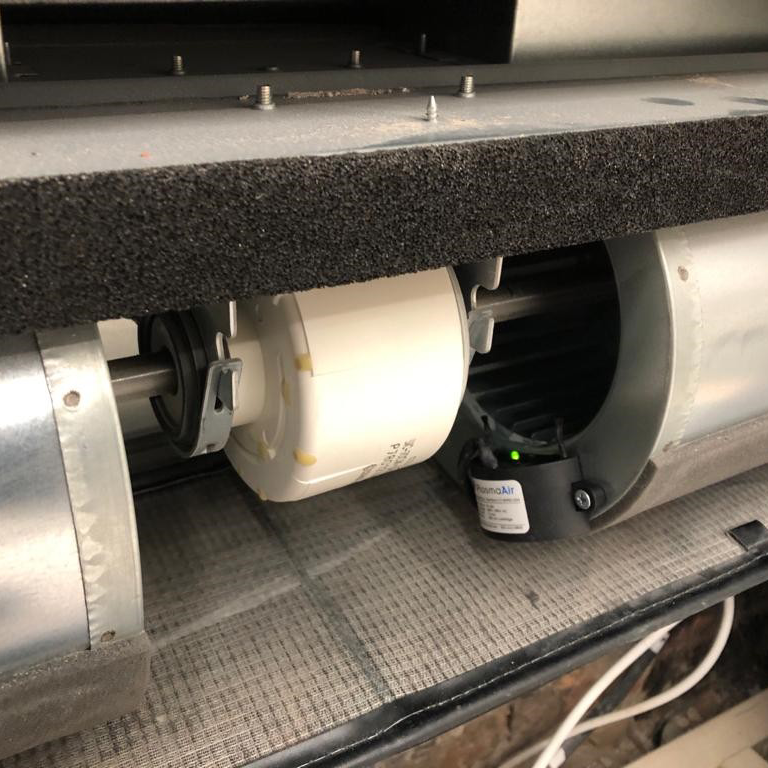

Bipolar Ionisation for FCUs

If you have FCUs or cassettes in your building, that is the best place to deploy Bipolar ionisation. The performance of the units is related to the number of ions they can create in the space. Creating ions in the FCU, and then immediately distributing them into the room will result in the highest concentrations, and therefore the greatest efficacy. Maintenance of the Bipolar ionisation units can be carried out at the same time as the FCU filters are cleaned or replaced.

Learn about Bipolar Ionisation

See our articles below to learn how BPI works and tips to help you select the right devices for your building.

1) How Bipolar Ionisation Works

2) How Bipolar Ionisation Saves Energy

3) Bipolar Ionisation: The Pros & Cons

4) How to Deploy Bipolar Ionisation Into Your HVAC System

5) UVGI vs Bipolar Ionisation in Non-Residential Buildings

Why Choose ARM Environments?

Experience

ARM Environments have been distributing Plasma Air bipolar ionisation products since 2018. We have assisted architects, MEP consultants, contractors, manufacturers and installers with the supply and fitment of thousands of BPI systems.

Trusted Partner

Our extensive experience combined with a range of alternative solutions means that we can advise whether BPI is the right solution for your scheme. We are the importer of Plasma Air products into the UK, so you can be assured of the most competitive prices.

Quick Response

We hold stock of bipolar ionisation systems in the UK, so lead-times are short.

Holistic Service

We offer installation, commissioning and maintenance services for bipolar ionisation systems.
